Basic Info.
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Standard Power
220V, 50Hz, 1 Phase
Optional Power
110V/230V/240V
Service
OEM Accept
Transport Package
Standard Exporting Package,
Specification
56*32*38cm
Trademark
MRCM
Origin
Zhejiang, China (Mainland)
HS Code
8460390000
Production Capacity
20 Sets Per Day
Product Description

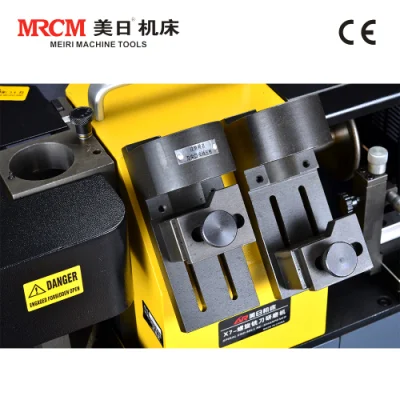

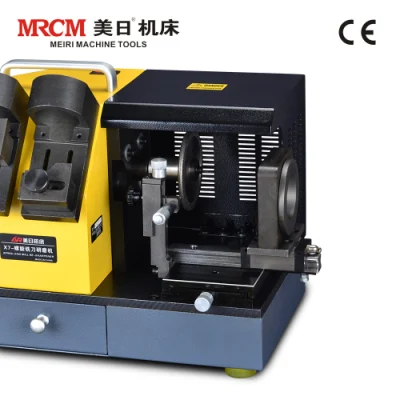

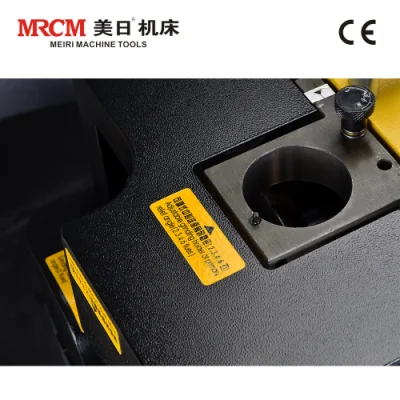

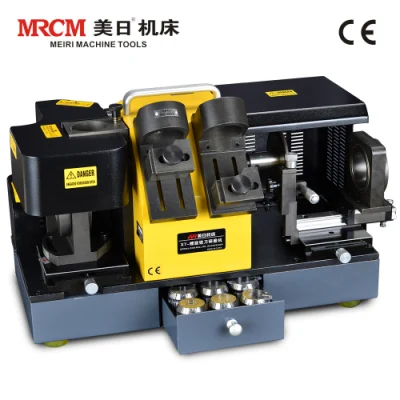

MR-X7 12-30mm End mill grinder, End mill sharpener
Product Description
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
SPECIFICATION
Details:
MR-X7
END MILL SHARPENER
More than 15 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
Still use a simple type of operation design, without any grinding experience can also quickly work, whether
you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Standard accessories:
Packaging & Shipping
EXPORTING PACKAGE, SAFE AND STABLE
Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you
and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according
to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
Product Description
1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
SPECIFICATION
Model: | MR-X7 |
Diameter: | Φ12-Φ30mm |
Power: | 220V/250W |
Speed: | 4400rpm |
Point angle: | 0°-5° |
Dimension: | 60*32*38cm |
Weight: | 50KG |
Standard Equipment: | Face grinding wheel: SDC (for carbide)×1 Side grinding wheel: SDC (for carbide)×1 |
Ten collets:Φ12, Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30 | |
Two collet chucks: 2,4 flutes ×1 piece; 3,6 flutes×1 piece | |
Optional Equipment: | Face grinding wheel: CBN (for HSS)×1 Side grinding wheel: CBN (for HSS)×1 |
Details:
MR-X7
END MILL SHARPENER
More than 15 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION
Still use a simple type of operation design, without any grinding experience can also quickly work, whether
you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Standard accessories:
Grinding wheel ×2 piece Standard is SDC for carbide material | Collets ×10 pcs (Φ4-Φ14mm) | Collet chuck ×2 piece |
